• Mortise and tenon structure bed
• Patented drawn aluminum cross beam
• Dynamic compensation technology for thermal effect
• Zoned Ventilation System
• FSCUT laser control system
HF-TU Series Laser Cutting Machine
The HF-TU Series automatic coil flexible cutting production line consists of a loading machine, an uncoiling machine, a precision six-roll skin pass mill, a main machine for laser cutting, an unloading unit, and an electrical control system, enabling the integrated production of coil materials.
Technical Parameters
| Model | HF3015TU | HF6020TU |
|---|---|---|
| Effective Cutting Range | 3000mm × 1500mm | 6000mm × 2000mm |
| Power | 3000W ~ 6000W | 3000W ~ 6000W |
| X/Y-axis Positioning Accuracy | ±0.03mm/m | ±0.03mm/m |
| X/Y-axis Repositioning Accuracy | ±0.02mm | ±0.02mm |
| Maximum Speed of X/Y-axis Linkage Positioning | 140m/min | 120m/min |
| Maximum X/Y-axis Acceleration | 1.5g | 1.2g |
| Floor Space of Whole Machine | 14000mm × 5200mm | 21400mm × 7000mm |
HF-TU Series Cutting Demo
Watch the HF-TU Series in action — a fully automated coil-to-sheet laser cutting system for flexible, integrated coil material processing. It delivers seamless, automated production from coil to sheet.
Other Hymson Laser Cutting Machines Sold & Serviced by Gleam Machinery

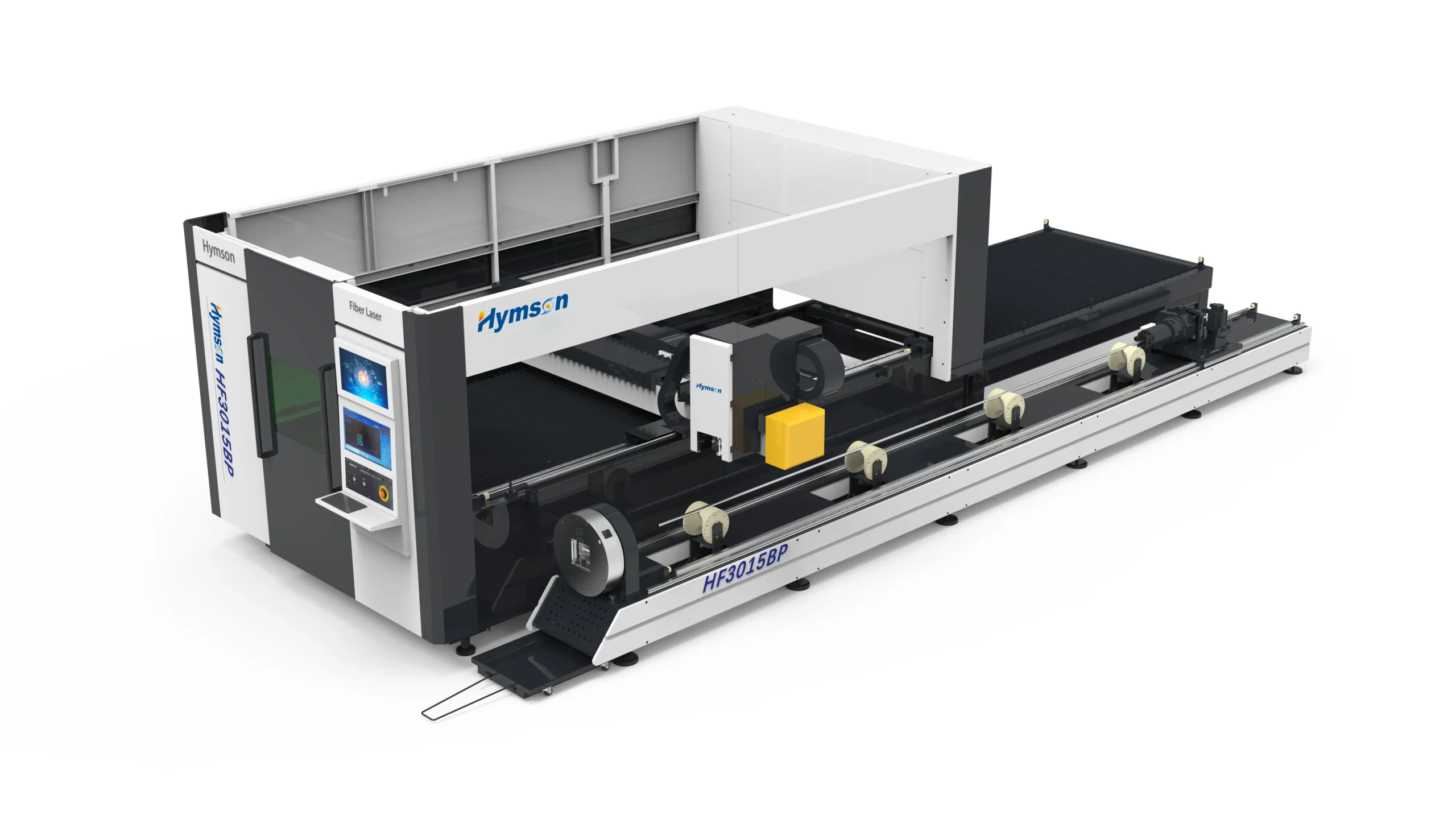

If you need a fiber laser machine for cutting metal tubes, please refer to the Hymson best-selling model:
If the HF-TU Series fiber laser cutting machine isn’t exactly what you’re looking for, we also sell the following models:
