• 3 high-precision pneumatic chucks
• Gantry beam structure
• Z-axis 2G follow-up acceleration
• FSCUT laser control system
• Optional bevel cutting
HF-TP Series Fiber Laser Cutting Machine
HF-TP Series three-chuck tube laser cutting machine is designed for cutting heavy tubes and long tubes, enabling 0mm tailings for better material utilization.
Technical Parameters
| Model | TP6026 | TP9028 | TP12036 | TP12056 |
|---|---|---|---|---|
| Tube Specification |
Circular Tubes: Φ10mm~Φ260mm Square & Rectangular: □10mm~□260mm |
Circular Tubes: Φ10mm~Φ280mm Square & Rectangular: □10mm~□280mm |
Circular Tubes: Φ20mm~Φ360mm Square & Rectangular: □20mm~□360mm |
Circular Tubes: Φ50mm~Φ560mm Square & Rectangular: □50mm~□400mm |
| Power | 3000W - 6000W | 3000W - 6000W | 6000W - 20000W | 6000W - 20000W |
| Tailing | ≥0mm | ≥0mm | ≥0mm | ≥0mm |
| Infinite Rotation | 100rpm/min | 80rpm/min | 60rpm/min | 50rpm/min |
| Loading Length | 6000mm | 9000mm | 12000mm | 12000mm |
| Max. Path Weight | 300KG | 500KG | 1.2T | 2T |
| Dimension (L×W) | 16000mm × 4000mm | 20000mm × 5000mm | 26000mm × 5000mm | 26000mm × 5000mm |
+ Bevel cutting (optional)
HF-TP Series Tube Cutting Demo
See the HF-TP Series in action — featuring three intelligent chucks, FSCUT professional system, and optional bevel cutting. Designed for long and heavy tubes, it delivers high-efficiency, precise cutting with minimal tailing for maximum material utilization.
Other Hymson Laser Cutting Machines Sold & Serviced by Gleam Machinery
If you need a fiber laser machine for cutting metal sheets, please refer to the Hymson best-selling model:

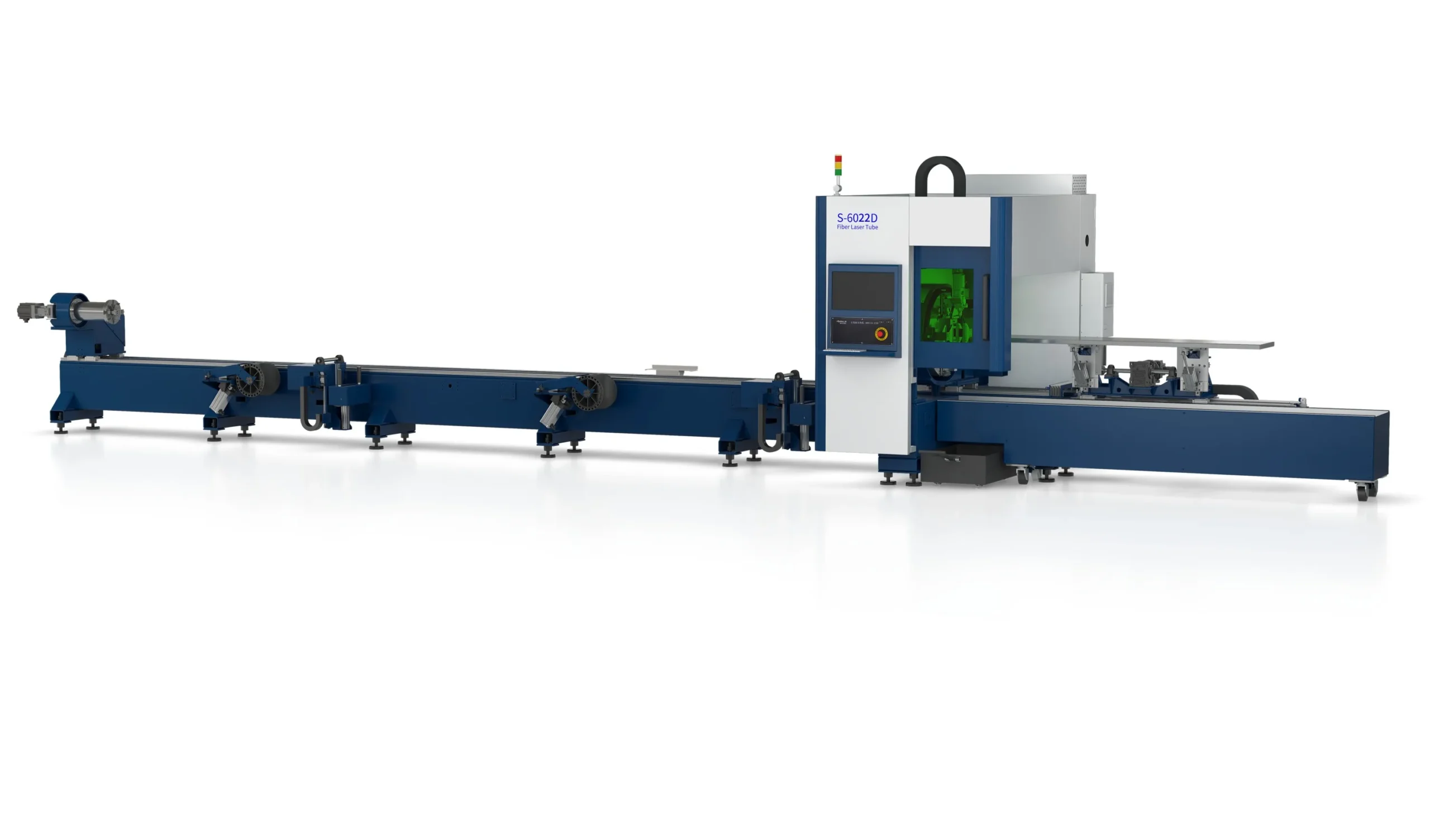

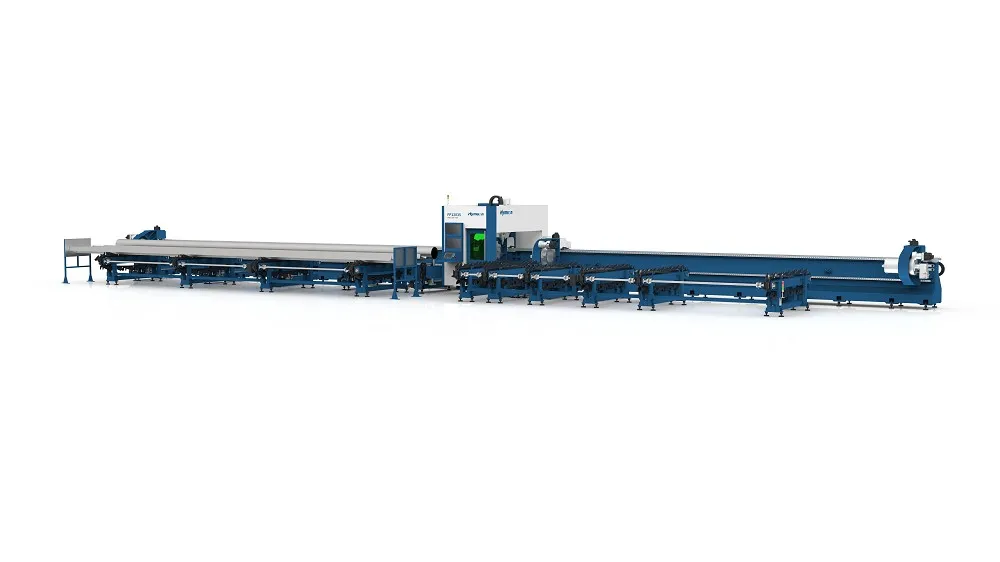

If the HF-TP Series fiber laser cutting machine isn’t exactly what you’re looking for, we also sell the following models:
